Shiplap Moulding 5-1/4" - 8

Shiplap Moulding 5-1/4" - 8

Shiplap Moulding 5-1/4" - 8

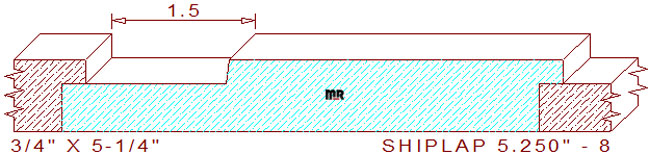

This simplistic shiplap siding molding 5-1/4" - 8 measures 5.250" width by .750" thickness, enabling the use of a 5-1/2" wide blank of four-quarter lumber for machining on an industrial-grade molder. The modest profile contains a 3-1/2" wide flat line with a 1/4" vertical step on the top. The lower portion retains a 1-3/4" broad line at a 1/2" thickness dimension; 1/4" of the lower section is hidden beneath the 1/2" tall by 1/4" wide rabbet on the opposite side when installed. When two pieces of lumber get joined, they create a decorative 1-1/2" wide dado, that space is adjustable by moving the top cutter head axial position creating several different width combinations for the channel.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Be sure to download all our free dxf files; see how easy the services we provide can increase productivity and reduce your manufacturing cost

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 5.250" / Depth of Cut = .250" (top knives).

Thickness = .750" / Depth of Cut = .250" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
