Shiplap Moulding 5-7/16" - 2

Shiplap Moulding 5-7/16" - 2

Shiplap Moulding 5-7/16" - 2

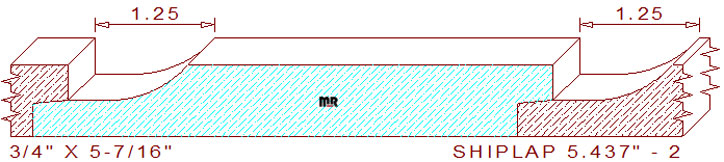

This exterior novelty drop siding moulding 5-7/16" - 2 is similar in style to WP-105, it measures 5.437" wide by 3/4" thickness allowing the pattern to be machined out of four quarter lumber, the exposed face dimension when installed is 4-1/16" wide. The concave shiplap siding pattern is comprised of a 3-13/16" wide flat line segment attached to a 1-5/8" wide congee derived from a 1-1/8" cove, the rabbet dimension on the backside is 3/8" wide by 3/8" tall with a four degree chamfer to receive the next piece of lumber in front of it when installed.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.437" / Depth of Cut = .420" (top knives.)

Thickness = .750" / Depth of Cut = .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
