Shiplap 5-1/2"

Shiplap 5-1/2"

Shiplap 5-1/2"

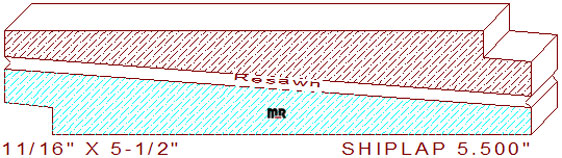

This 5-1/2" Dolly Varden rustic shiplap siding measures 5.500" wide by 1.093" thickness, allowing both pieces to be machined from five-quarter lumber. After being resawn into two pieces with a band saw, the finish thickness will be 11/16" on the taller side and 9/32" on the opposite end. The backside rabbet measures 1/2" wide by 9/32" tall with a five-degree bevel to receive the next piece of siding which is typically face nailed above the rabbeted edge during installation. The acrylic template design has a v-notch built in the sides to help the saw operator identify the exact location of the cut; this helps control the tolerances of the finished product.

Mirror Reflections offers thousands of inspirational and compelling architectural profiles that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free dxf files, and see how easily the services we provide can increase productivity while reducing manufacturing costs.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.093
Depth of Cut: 0.500
Left Cutter Head
Thickness: 1.093
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$135.15
$92.15
(Template not needed)
Not Needed
Not Needed
Total:
$227.30
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$142.52
$99.52
(Template not needed)
Not Needed
Not Needed
Total:
$242.04
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$149.89
$106.89
(Template not needed)
Not Needed
Not Needed
Total:
$256.79
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
