Shiplap 5-1/2" - 1

Shiplap 5-1/2" - 1

Shiplap 5-1/2" - 1

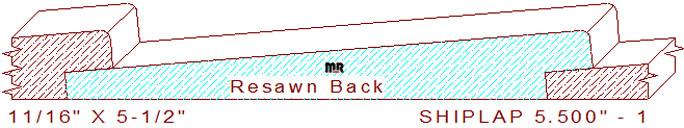

This 5-1/2" - 1 # 371 beveled shiplap siding measures 5.500" wide by .687" thickness, allowing the pattern to be machined from resawn eight-quarter lumber. The profile is milled with the resawn side down on the molder bed plates with a smooth face-up. The left and right vertical cutter heads will mill the rabbet and small chamfer to ensure a perfect fit while simultaneously having the capability to wick moisture away from the joint area when installed. The widely used profile is composed of a 3/32" rounded tall edge, tangent off of a 4.64-degree beveled line that transitions the thickness to 9/32" on the thin side of the pattern.

This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this common shiplap siding pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, expediting the production process.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.718
Depth of Cut: 0.045
Left Cutter Head
Thickness: 0.718
Depth of Cut: 0.500
Top Cutter Head
Width: 5.500
Depth of Cut: 0.406
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$130.50
$130.50
$355.50
Not Needed
Total:
$616.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$137.50
$137.50
$380.50
Not Needed
Total:
$655.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$144.50
$144.50
$405.50
Not Needed
Total:
$694.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
