Shiplap Moulding 5-1/2" - 6

Shiplap Moulding 5-1/2" - 6

Shiplap Moulding 5-1/2" - 6

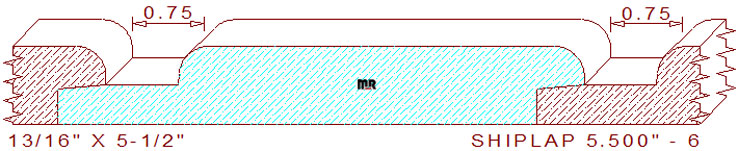

This decorative shiplap siding molding 5-1/2" - 6 measures 5.500" wide by .812" thickness, allowing the detail to be milled out of four quarter lumber. The radius edge profile is composed of a 4-1/4" wide by 13/32" tall raised fillet with 3/16" round edges, attached to a 3/4" wide line segment and a 1/2" wide tapered line that fits under the 1/2" wide rabbet on the opposite side when two pieces of milled lumber are joined they create a 3/4" wide sunk fillet.

Become professionally efficient while searching over 15,000 mouldings in our state-of-the-art molding catalog. Watch the short video on the first page to find design ideas for your next woodworking project. We're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.500" / Depth of Cut = .000" (top knives.)

Thickness = .812" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
