Shiplap Moulding 5-9/16"

Shiplap Moulding 5-9/16"

Shiplap Moulding 5-9/16"

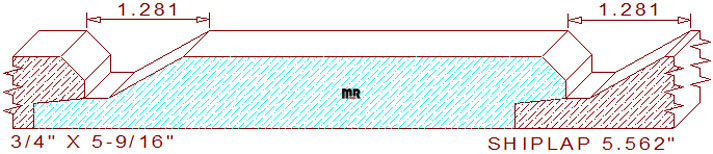

This v-groove/channel shiplap siding molding 5-9/16" measures 5.562" wide by .750" thickness, allowing the detail to be machined out of four quarter lumber. The embellished profile is composed of a 5/16" tall by 17/32" wide tongue on the left, this portion fits under the rabbet on the opposite side when assembled, connected to a 1/4" wide sunk fillet merged with a 25/32" long up-sloped angled line, attached to a 3-3/4" wide straight flat line on top with a 1/4" beveled edge above the rabbet on the right. When two pieces of milled lumber are joined together they create a functional & attractive 1-9/32" wide v-shaped channel to displace moisture when installed, with a face coverage dimension of 5-1/32" wide.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our wide variety of profile designs for years; we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing costs.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 5.562" / Depth of Cut = .498" (top knives.)

Thickness = .750" / Depth of Cut = .531" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
