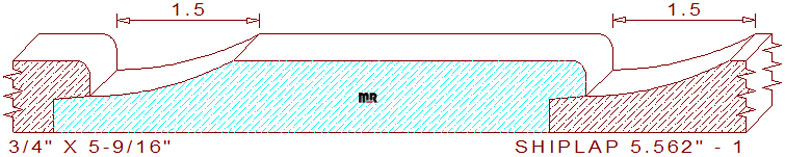

This decorative 5-9/16" - 1shiplap siding measures 5.562" wide by .750" thickness, permitting milling out of four-quarter lumber. The beautiful scooped-out profile comprises a 1-3/4" wide by 3/8" tall concave semicircle on the left, 3/8" of this section will be hidden under the 3/8" wide by 3/8" tall rabbet on the opposite side when installed. The top portion measures 3-11/16" wide with a 5/32" round-over that will serve as a drip edge for moisture when assembled. When two pieces of milled lumber join, they create a 5-3/16" wide face coverage dimension with an attractive 1-1/2" wide cove between the merged boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.375
Top Cutter Head
Width: 5.562
Depth of Cut: 0.426
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$134.00
$371.22
Not Needed
Total:
$505.22
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$141.00
$396.47
Not Needed
Total:
$537.47
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$151.50
$434.34
Not Needed
Total:
$585.84
