Shiplap Moulding 5-13/16"

Shiplap Moulding 5-13/16"

Shiplap Moulding 5-13/16"

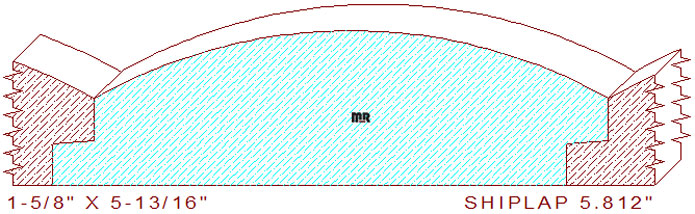

This Log Cabin Siding Shiplap Siding 5-13/16" measures 5.812" wide by 1.625" thickness with a .437" depth of cut on both the right and left vertical sets of cutters and a .803" depth of cut on the top horizontal set of knives.

The profile is comprised of a 5-7/16" radius arc that simulates log cabin siding, it has a 7/16" wide by 7/16" tall notch on one side, and the same size rabbet on the opposite side of the pattern. The moulding knife design includes the required draft angles to maintain the ability to sharpen the knives properly without modifying the detail while prolonging the milling time between sharpening whether you own a Weinig, Wadkin, Leadermac, SCM, Diehl, or Kentwood moulder, our custom moulding knife designs will mill flawlessly on them all.

We invite you to search for other moulding design ideas for your elegant home. We have over 15,000 alternative profile options for you to choose from; alter the search parameters to view. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom moulding designs.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
