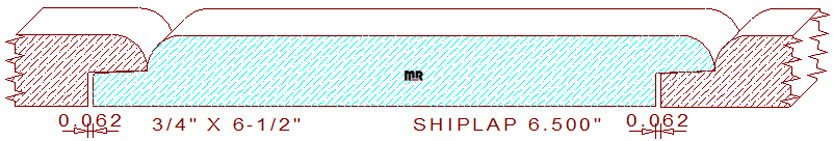

This round edge 6-1/2" shiplap siding measures 6.500" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The basic standard profile is composed of a 5-15/16" broad line segment with a 3/8" radius edge on each side, connected to a 9/16" broad tapered line that will fit into the rabbet on the backside of the pattern, that rabbet dimension is 5/8" wide by 11/32" tall. When two pieces of milled lumber are joined, they create a double 3/8" rounded edge with a 1/16" wide gap on the backside of the joined boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.625
Top Cutter Head
Width: 6.500
Depth of Cut: 0.508
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$134.00
$420.00
Not Needed
Total:
$554.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$141.00
$449.00
Not Needed
Total:
$590.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$151.50
$492.50
Not Needed
Total:
$644.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
