Shiplap 6-1/2" - 1
Shiplap 6-1/2" - 1

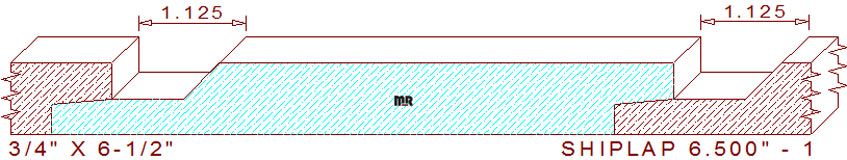

This 6-1/2" - 1 shiplap siding measures 6.500" wide by .750" thickness. The profile section measures 1-3/4" wide, 5/8" is hidden under the rabbet milled on the opposite side edge. When two pieces of finished milled lumber are joined together, they will create a 1-1/8" wide channel on one face side of the joined boards, the beveled edge positioned on one side of the track in the above image will allow moisture to run off.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.750
Depth of Cut: 0.625
Top Cutter Head
Width: 6.500
Depth of Cut: 0.508
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$134.00
$420.00
Not Needed
Total:
$554.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$141.00
$449.00
Not Needed
Total:
$590.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$151.50
$492.50
Not Needed
Total:
$644.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
