Shiplap Moulding 7" - 2

Shiplap Moulding 7" - 2

Shiplap Moulding 7" - 2

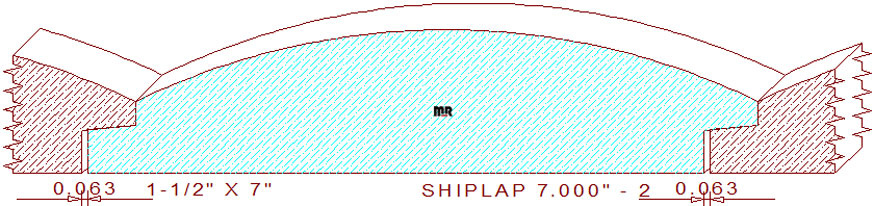

This log cabin siding molding 7" - 2, measures 7.000" wide by 1.500" thickness overall, necessitating the use of eight quarter lumber for milling on a commercial-grade molder. For installation planning purposes, the face coverage dimension is 6-1/2" full when assembled. The half log-shaped profile is composed of a 7-27/64" radius semicircular convex arc on the top. The left side retains a 9/16" wide by 1/2" tall rabbet on the bottom; the opposite side consists of a 1/2" wide by 1/2" tall plow on the face side. When two pieces of milled lumber get joined, they create a 6-1/2" face exposure on top and a 1/16" channel on the bottom.

Are you a molding manufacturer? Please add your company information to our millwork suppliers map; this valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It is free. Why not offer your clients beautiful wood pattern designs that will enhance the grace and luxury of their elegant home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .843" (top knives).

Thickness = 1.500" / Depth of Cut = .500" (right blades) & .562" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
