Shiplap Moulding 7" - 3

Shiplap Moulding 7" - 3

Shiplap Moulding 7" - 3

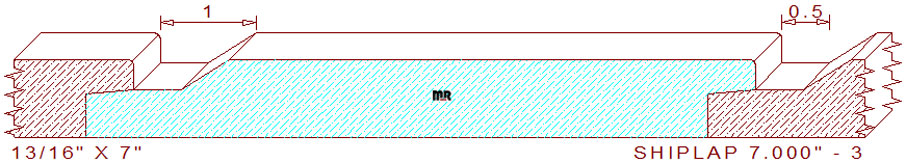

This shiplap siding moulding 7" - 3 measures 7.000" wide by .812" thickness. The pattern will require the use of a 7-1/4" wide blank of four-quarter lumber for milling on an industrial molder. The common clapboard profile comprises a 5-1/2" flat line segment in the center. The left side retains a 1/2" wide by 5/16" deep bevel to help displace moisture. This area joins a 1/2" broad fillet and a 1/2" tapered edge that fits into the rabbet on the right side edge. There is also a 1/16" rolled outer corner on the top face to help minimize splintering of the wood.

Architects, interior designers, contractors, lumber mills, cabinet shops, and molding manufacturers are utilizing our wide variety of molding designs. We trust you will find that special profile to enhance the architectural style of your client's home or office. Be sure to download all our free dxf files; see how easy the services we provide can increase productivity and reduce your manufacturing cost.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 7.000" / Depth of Cut = .372" (top knives).

Thickness = .812" / Depth of Cut = .500" (left blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
