Shiplap 7-1/16" - 1
Shiplap 7-1/16" - 1

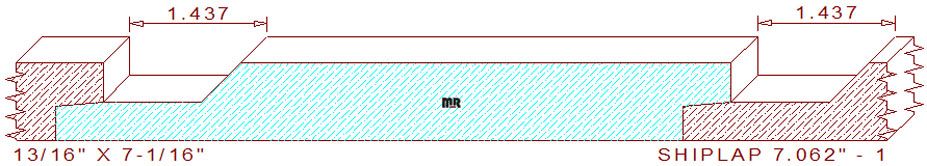

This channel 7-1/16" - 1 shiplap siding measures 7.062" wide by .812" thick. The profile comprises a 5-1/8" wide straight fillet, attached to a 13/32" wide chamfer and a 1-17/32" sunk fillet. One-half inch is hidden when installed. When two pieces of lumber are joined, they create a 1-7/16" wide functional and decorative channel/gap between the boards.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.812
Depth of Cut: 0.500
Top Cutter Head
Width: 7.062
Depth of Cut: 0.467
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$145.50
$497.10
Not Needed
Total:
$642.60
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$152.50
$528.34
Not Needed
Total:
$680.84
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.50
$590.84
Not Needed
Total:
$757.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
