Shiplap Moulding 7-1/16" - 2
Shiplap Moulding 7-1/16" - 2

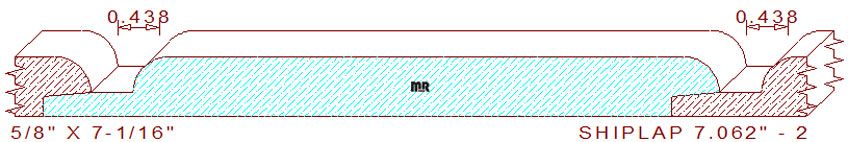

This Shiplap Siding Moulding 7-1/16" - 2 measures 7.062" by .625" thickness, the exposed width dimension is 6-9/16". The profile portion of the design is milled from the left vertical and top horizontal cutter head. When two pieces of finished milled lumber are joined together, they create a 7/16" wide channel with 3/8" radius edges.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
