Shiplap 7-1/8" - 13
Shiplap 7-1/8" - 13

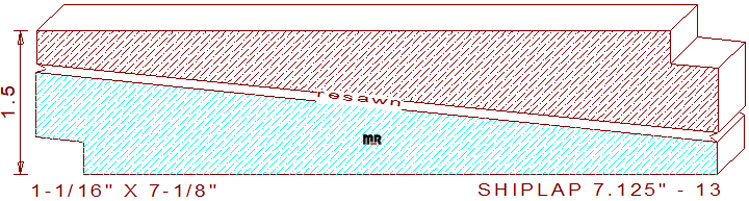

This resawn 7-1/8" shiplap siding - 13 measures 7.125" wide by 1.500" thickness, permitting the use of rough six or eight quarter lumber. The profile is composed of an 11/32" tall by 1/2" wide rabbet on both the top and bottom side edge of the design with a 1/8" wide off-centered v-groove. After the milling process, this v-notch is used as a guide to re-saw the block of lumber into two pieces of 7-1/8" wide by 1-1/16" thick rough-faced siding. The detail transitions from 1-1/16" on the taller side to 11/32" on the thinner side of the resawn plank. We offer a smaller width of this siding for your review and consideration, shiplap siding 5-3/8" - 9.
Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map. This valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free; offer your clients profile designs they don’t even know exist.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.500
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$161.00
$117.00
(Template not needed)
Not Needed
Not Needed
Total:
$278.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$170.00
$126.00
(Template not needed)
Not Needed
Not Needed
Total:
$296.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$183.50
$139.50
(Template not needed)
Not Needed
Not Needed
Total:
$323.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
