WP 101 Shiplap Siding 7-1/8" - 19
WP 101 Shiplap Siding 7-1/8" - 19

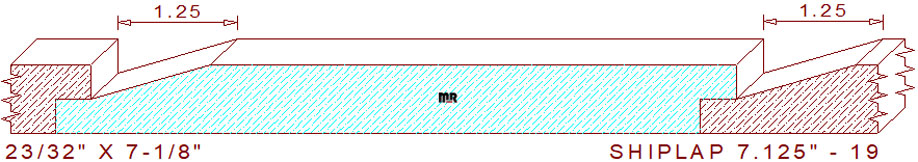

This WP 101 shiplap siding 7-1/8" - 19 measures 7.125" wide by .718" thickness, allowing the detail to be milled out of four-quarter lumber. The functional profile is comprised of a 5-1/2" wide horizontal line segment in the center, attached to a 1-1/4" wide six-degree bevel with a 3/8" wide horizontal line which fits into the piece in front of it, the exposed face dimension is 6-3/4" when installed.
Be sure to check out a few other profile designs for different rooms in your beautiful home or office, our moulding catalog has over a fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and the superior functionality of all our custom knife profiles.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.718
Depth of Cut: 0.375
Top Cutter Head
Width: 7.125
Depth of Cut: 0.359
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$134.00
$452.50
Not Needed
Total:
$586.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$141.00
$484.00
Not Needed
Total:
$625.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$151.50
$531.25
Not Needed
Total:
$682.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
