Shiplap Siding 7-1/8" - 2

Shiplap Siding 7-1/8" - 2

Shiplap Siding 7-1/8" - 2

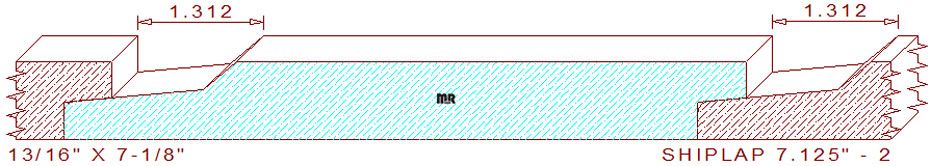

This Shiplap Siding 7-1/8" - 2 measures 7.125" wide by .812" thickness. The profile is comprised of a 5-5/16" wide flat fillet that transitions into a .296" deep angle attached to a 1.458" wide taper with a 1/8" radius on the thin edge of the pattern; the backside rabbet measures 1/2" wide by .389" tall. When two pieces of lumber are joined, they create a 1-5/16" wide tapered channel on the face side, for moisture runoff.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
