Shiplap Siding 7-1/8" - 20

Shiplap Siding 7-1/8" - 20

Shiplap Siding 7-1/8" - 20

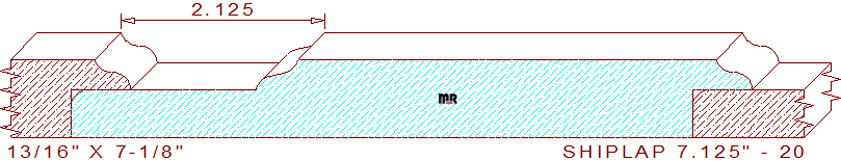

This lovely shiplap siding 7-1/8" - 20 measures 7.125" wide by .812" thickness, allowing the use of a 7-3/8" wide blank of four-quarter lumber for milling on an industrial molder. The custom profile comprises a 4-3/8" flat line segment in the center. The left side retains a 1-15/16" wide section at a 1/2" thickness with a 3/16" eased corner, joined to a two tangent radius ogee. The opposite side retains a 3/8" wide s-shaped curvature with a 5/8" wide by 1/2" tall rabbet. When two pieces of milled lumber get joined, they create a decorative 2-1/8" channel with a face coverage dimension of 6-1/2" when installed.

Utilize our beautiful patterns to create a stylish molding catalog for your millwork company, or, connect our catalog to your website, offer more eye-catching profiles and give your clients more knowledge about our industry while reducing production cost spent on molding knife design. Let us help you in remodel that beautiful house into an elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.812
Depth of Cut: 0.625
Top Cutter Head
Width: 7.125
Depth of Cut: 0.656
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$130.50
$468.25
Not Needed
Total:
$598.75
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$137.50
$499.75
Not Needed
Total:
$637.25
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$144.50
$531.25
Not Needed
Total:
$675.75
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
