Shiplap Moulding 7-3/16" - 2

Shiplap Moulding 7-3/16" - 2

Shiplap Moulding 7-3/16" - 2

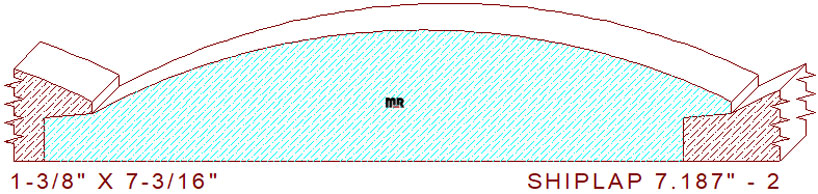

This log cabin shiplap siding moulding 7-3/16" - 2 measures 7.187" wide by 1.375" thickness, enabling the detail to be machined from six quarter lumber, the exposed face dimension is 6-11/16" wide. The beautiful profile is comprised of a 7-19/64" radius arc on the face that simulates the side of a log, there is a 1/8" vertical step when two pieces of lumber are joined together. This area allows water to drip onto the piece below it, keeping moisture away from the joint, the backside rabbet dimension is 1/2" wide by 1/2" tall. We have a similar profile with a slightly larger width and thickness for your review and consideration, shiplap 8.500". We also have some log cabin siding profiles with a tongue & groove joint instead of this lap joint.

Architects, interior designers, lumber mills and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing cost.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.187" / Depth of Cut = .938" (top knives.)

Thickness = 1.375" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
