Shiplap Moulding 7-1/4" - 1

Shiplap Moulding 7-1/4" - 1

Shiplap Moulding 7-1/4" - 1

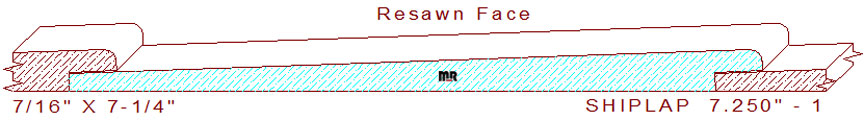

This rustic shiplap siding molding 7-1/4" - 1 measure 7.250" wide by .437" thickness, enabling the pattern to be machined out of resawn six quarter lumber. The beveled detail comprises a 2.099-degree down-sloping angled line the entire face of the profile, starting from a 7/16" thickness with a 1/8" eased edge on the left, to 3/16" on the opposite side of the pattern. When two pieces of finished milled lumber are joined together they create a 6-3/4" face dimension between the joined boards.

We're delighted you found a beautiful profile that interests you; please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you're new to the industry, read some of our informational articles, they will help you get started with the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all consummate professionals.

For knife quoting purposes click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.250" / Depth of Cut = .255" (top knives).

Thickness = .437" / Depth of Cut = .303" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
