WP 115 Shiplap Moulding 7-1/4" - 3

WP 115 Shiplap Moulding 7-1/4" - 3

WP 115 Shiplap Moulding 7-1/4" - 3

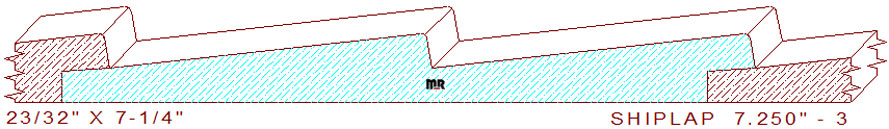

This WP 115 shiplap siding moulding 7-1/4" - 3 measures 7.250" wide by .718" thickness, permitting the pattern to be machined out of four quarter lumber. The common down-sloping profile is designed to wick moisture away from the joint area of the siding and onto the exposed face in foul weather conditions. The profile is composed of two 3-3/8" wide 6.289-degree beveled lines divided by a 1/16" wide, steep chamfer in the center, with a 1/16" broken edge on the high points, merged with a slightly angled 1/2" wide line on the left edge, this area will be hidden underneath the rabbet in front of it when installed. When two pieces of milled lumber are joined together, they create a 6-3/4" wide face coverage dimension between the merged boards. We offer a smaller 5-3/8" version of this profile for your review and consideration, shiplap siding 5.375" - 2.

Architects, interior designers, contractors, lumber mills and molding manufacturers have been utilizing our wide variety of designs for years, we trust you will find that special profile to enhance the architectural style of your client's home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while simultaneously reducing manufacturing costs.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 7.250" / Depth of Cut = .500" (top knives.)

Thickness = .718" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
