Shiplap Moulding 7-1/4" - 4

Shiplap Moulding 7-1/4" - 4

Shiplap Moulding 7-1/4" - 4

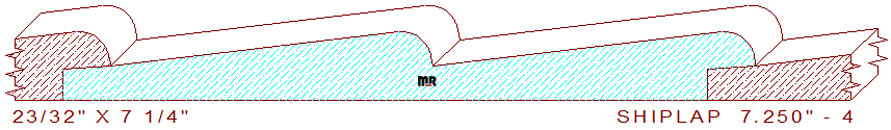

This drop shiplap siding molding 7-1/4" - 4 measures 7.250" wide by .718" thickness. The asymmetrical profile comprises two 5/16" radius semicircles tangent off of a 6.744 degree angled lines that transition the thickness to 21/64" on the thin side of the design. The backside rabbet dimensions are 1/2" wide by 23/64" tall, the beveled line in the rabbet is the same angle as the face to receive the merged boards when installed.

Whether you have a Weinig R 1000 profile grinder, or a CNC Technology template making machine, our innovative molding profiles are intended to save valuable time and money in your demanding production schedule. From just an idea in one's mind to reality in your client's beautiful home, our patterns reflect their imagination's attractive elegance and architectural style. Be creative by mixing and matching a few of our beautiful designs.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.250" / Depth of Cut = .500" (top knives.)

Thickness = .718" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
