Shiplap Moulding 7-7/16"

Shiplap Moulding 7-7/16"

Shiplap Moulding 7-7/16"

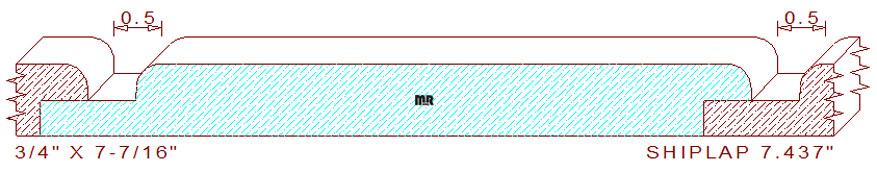

This Shiplap Siding 7-7/16" measures 7.437" wide by .750" thickness, with a depth of cut of .500" on the left vertical cutters and a .366" depth of cut on the top horizontal profile knives.

The detail comprises a 6-7/16" wide horizontal line with 1/4" radius eased edges, connected to a 1" wide by 3/8" thick tongue. One-half-inch of the tongue side will hide under the back-side rabbet which measures 1/2" wide by 3/8" tall. When two pieces of milled lumber are joined together, they create a 6-15/16" exposed face dimension with a 1/2" channel/gap between the joined boards.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding profile designs. Whether you own a recently built house or an older style residence, we have the ability, knowledge and experience to create moulding designs that will complement the architectural décor of your client's beautifully elegant home.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
