Shiplap Moulding 7-1/2" - 2

Shiplap Moulding 7-1/2" - 2

Shiplap Moulding 7-1/2" - 2

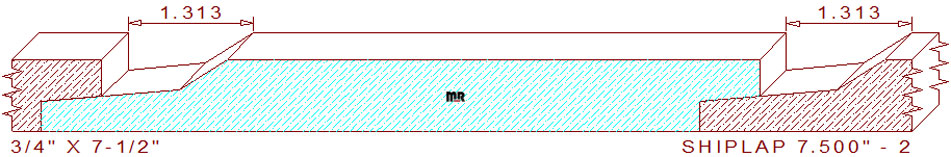

This exterior channel shiplap siding moulding 7-1/2" - 2 measures 7.500" wide by .750" thickness, allowing the detail to be milled out of four quarter lumber. The decorative functional profile is composed of a 5-9/16" wide flat line in the center, connected to a 1/2" wide by 5/16" deep angled line that merges with a 1-7/16" wide 4.95 degree beveled edge. Five-eights of an inch of this line is hidden underneath the piece of lumber in front of it, together these create a 1-5/16" wide tapered channel when installed, this allows moisture to be driven away from the joint and on to the exposed face for accelerated evaporation when wet.

This professionally drafted cad dxf file (available for purchase in the box below) contains three high precision template designs to create cutters for this siding detail, one for milling the entire face side, one for the rabbet and one for milling just the profile portion of the design, this will allow for various widths to be milled, it will require two top horizontal cutter heads to achieve this. Architects, interior designers, lumber mills, and manufacturers have been utilizing our wide variety of creative designs for years; we trust you will find that special profile to enhance the architectural style of your client's home.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 7.500" / Depth of Cut = .469" (top knives.)

Thickness = .750" / Depth of Cut = .625" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
