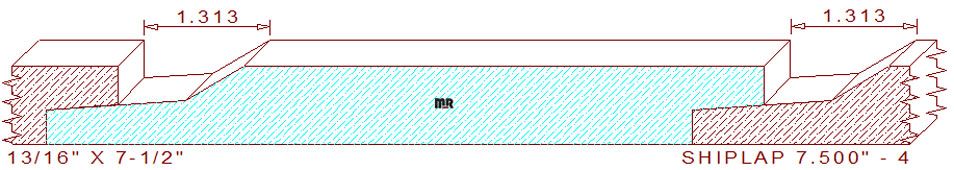

This 1-5/16" channel shiplap siding 7-1/2" - 4 measures 7.500" overall width with an exposed wall coverage is 6-3/4" wide. The thickness dimension is 13/16". The profile portion dimension measures 2-1/16," but 3/4" of it is overlapped by the board in front of it when installed. The profile design is tapered by thirty degrees to allow moisture to run off the joint area; the fillet in the middle is slightly tapered for the same reasons. When two pieces of finished milled lumber are joined together, they create a 1-5/16" wide channel for decorative purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
