Shiplap Moulding 8"

Shiplap Moulding 8"

Shiplap Moulding 8"

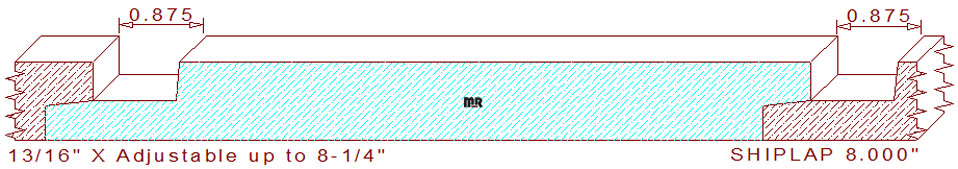

This shiplap siding moulding 8" measures 8.000" wide by .812" thickness, allowing the pattern to be milled from four quarter lumber. The profile is comprised of a 6-5/8" wide by 13/32" deep stepped fillet across the entire face, connected to a 1-3/8" wide tongue. One-half inch of the tongue will be hidden in the back-side rabbet that measures 1/2" wide by 3/8" tall. When two pieces of milled lumber are joined together, they create a 7-1/2" face dimension with a decorative 7/8" channel/gap between the joined boards.

Mirror Reflections offers thousands of inspirational and compelling architectural moldings that will shape the contour of every exquisite room in your client's beautiful home or office. Download all our free dxf files, see how easy the services we provide can increase productivity while reducing manufacturing costs.

For knife quoting purposes, click to open the calculator below; we have added only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.000" / Depth of Cut = .470" (top knives.)

Thickness = .812" / Depth of Cut = .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
