Shiplap Moulding 8-3/8"

Shiplap Moulding 8-3/8"

Shiplap Moulding 8-3/8"

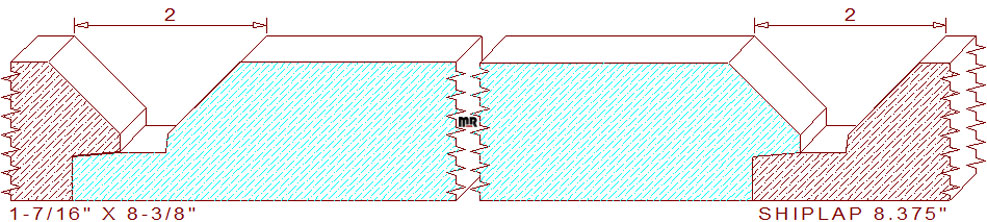

This v-groove/channel shiplap siding moulding 8-3/8" measures 8.375" wide by 1.437" thickness, necessitating the use of eight quarter lumber for milling on an industrial style molder. The decorative, functional profile is composed of a 5-7/8" wide flat line in the center, the right side consists of a 3/4" wide by 3/4" deep forty-five-degree bevel with a 3/16" vertical line and a 1/2" squared rabbet, the left side is made up of a one-inch wide horizontal line with a 3/16" vertical line segment and a 3/4" forty-five degree angled line. When two pieces of milled lumber are joined together, they create a 2" wide v-groove with a 1/2" wide by 3/16" deep channel in the center.

This professionally drafted cad dxf file (available for purchase in the box below) contains two high precision template designs to create cutters for this gorgeous shiplap siding. From just an idea in one's mind to reality in their home, our custom profiles reflect the creative style of your imagination; let us assist you in complementing your architectural decor with any of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.375" / Depth of Cut = 1.000" (top knives.)

Thickness = 1.437" / Depth of Cut = .843" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
