WP 105 Shiplap Moulding 8-5/8" - 7

WP 105 Shiplap Moulding 8-5/8" - 7

WP 105 Shiplap Moulding 8-5/8" - 7

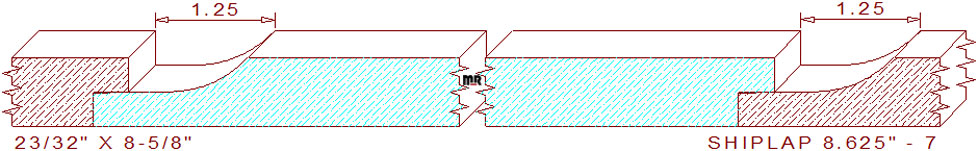

This WP-105 shiplap siding moulding 8-5/8" - 7 measures 8.625" wide by .718" thickness, enabling the detail to be milled out of four quarter lumber, the face coverage dimension for installation purposes is 8-1/4" wide. The common functional profile is comprised of a seven inch wide horizontal line segment in the center, connected to a 1-5/8" wide congee derived from a 1-1/8" radius cove, a 3/8" portion of this line will be hidden underneath the piece of lumber in front of it when installed. We also have a smaller version of this detail you may want to review and consider, shiplap 5.375" - 13, we have designed the templates for this to mill all width sizes.

Be sure to check out a few other profile designs for different rooms in your beautifully stylish home, with over 15,000 patterns in our search by size moulding catalog there is something for everyone’s creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce this creative pattern.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 8.625" / Depth of Cut = .394" (top knives.)

Thickness = .718" / Depth of Cut = .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
