Shiplap 8-7/8"
Shiplap 8-7/8"

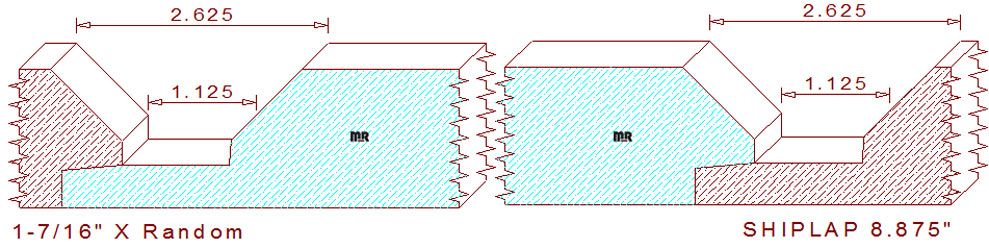

This large gap shiplap siding measures 8-7/8" wide by random widths. When two pieces of lumber are joined together, they form an overall V-groove of 2-5/8" wide with a 1-1/8" wide fillet in the middle. This pattern requires two top cutter heads to manufacture this profile because the design is a detail only the pattern mills on the left and second top spindles.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.437
Depth of Cut: 0.843
Top Cutter Head
Width: 2.500
Depth of Cut: 1.125
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$179.59
$245.50
Not Needed
Total:
$425.09
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$188.34
$258.50
Not Needed
Total:
$446.84
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$205.84
$284.50
Not Needed
Total:
$490.34
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
