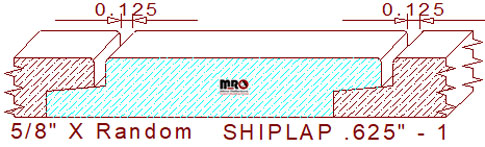

This 5/8" - 1 nickel gap siding profile contains a 5/8" wide by 17/64" tall, slightly angled tongue on the left. The opposing side retains a 17/64" tall by 1/2" wide rabbet. When two milled lumber pieces get joined, they create a 1/8" wide by 5/16" embellished channel with 1/16" eased corners on the joined boards' face side. This decorative shiplap molding measures random widths by .625" in thickness. The suggested rough wood rip size using four-quarter lumber is 1/4" larger in width than the sought-after milled dimension.
Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking and a former Weinig field service technician.
The active combined high-speed steel knives & template prices are listed below for quoting purposes.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.625
Depth of Cut: 0.843
Left Cutter Head
Thickness: 0.625
Depth of Cut: 0.500
Top Cutter Head
Width: 0.000
Depth of Cut: 0.000
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$134.00
Not Needed
Not Needed
Total:
$275.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$148.00
$141.00
Not Needed
Not Needed
Total:
$289.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$158.50
$151.50
Not Needed
Not Needed
Total:
$310.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
