Shutter/Louver1-1/8" - 1
Shutter/Louver1-1/8" - 1

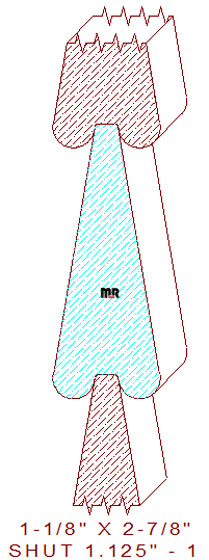

This beautiful 1-1/8" - 1 false shutter measures 1.125" wide by 2.875" tall. The unique profile is comprised of two 7/32" radius half-round circles with a 1/4" wide groove in the center at the bottom. The sides consist of two 9.585-degree beveled lines that taper upwards to 1/4" width to fit into the bottom of the design. This professionally drafted CAD DXF file includes two high-precision template designs for creating cutters for this stylish false louver detail. From just an idea in one's mind to reality in their home, our profiles reflect the beauty and style of your imagination; let us help you design a custom pattern today.
Are you a millwork manufacturer? If so, please add your company to our millwork suppliers map; this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our profile catalog to your website? It's free; you don't even have to be our client. You can't offer clients molding choices they don't even know are available.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.125
Depth of Cut: 0.274
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 2.875
Depth of Cut: 0.274
Bottom Cutter Head
Width: 2.875
Depth of Cut: 0.274
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$140.50
Not Needed
$231.50
$188.50
(Template not needed)
Total:
$560.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$148.00
Not Needed
$246.00
$203.00
(Template not needed)
Total:
$597.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.25
Not Needed
$267.75
$224.75
(Template not needed)
Total:
$651.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
