Shutter/Louver 1-5/8"
Shutter/Louver 1-5/8"

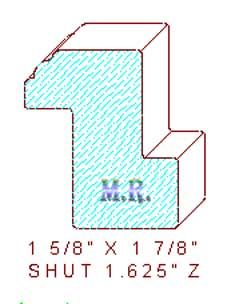

Z Mould Shutter Part 1-5/8"
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.375
Depth of Cut: 0.376
Left Cutter Head
Thickness: 1.375
Depth of Cut: 0.444
Top Cutter Head
Width: 2.188
Depth of Cut: 0.393
Bottom Cutter Head
Width: 2.188
Depth of Cut: 0.450
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$158.75
$158.75
$202.65
$202.65
Total:
$722.80
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.25
$167.25
$214.40
$214.40
Total:
$763.31
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$180.00
$180.00
$232.03
$232.03
Total:
$824.06
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
