Search Our Moulding Knives Catalog by Category and Size

*Enter desired search sizes - use whole numbers & decimals

Shutter/Louver 3"

Shutter/Louver 3"

Shutter/Louver 3"

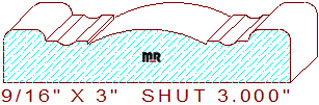

This shutter/louver valance 3" measures 3.000" width by .562" thickness, allowing the use of resawn six or solid four-quarter lumber for milling on an industrial-grade molder. The symmetrical profile contains a 1-17/64" convex semicircular arc on the top center. This arc gets flanked by two 3/16" wide hollow flutes, bordered by small horizontal line segments, and a 7/16" full raised fillet with 1/8" rolled edges on each side of the design.

Are you a molding manufacturer? Please add your company information to our millwork suppliers map; this valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It is free. Why not offer your clients beautiful wood pattern designs that will enhance the grace and luxury of their elegant home.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here.

Width = 3.000" / Depth of Cut = .277" (top knives).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
