Shutter/Louver 3" - 1
Shutter/Louver 3" - 1

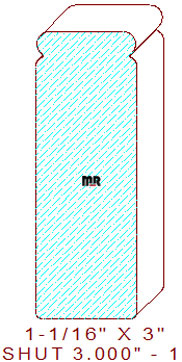

This tall, slender 3" - 1 shutter stile/rail measures 3.000" tall by 1.062" wide, requiring the use of five-quarter lumber and milling on a commercial-grade molder. The symmetrical profile features two recessed 1/8" half-circles on the top edges. The semicircles flare outward to full width by utilizing another 1/8" radius convex arc with a 1/32" sunk fillet used in transition, with 3/64" eased edges at the bottom of the design. The pattern is milled by the top, bottom, and left cutterheads, allowing widths to be adjusted to any desired size.
We're delighted you found a beautiful profile that interests you. Please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial machinery and knife grinding room. If you are new to the industry, read some of our informational articles ; they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount artisans for all our clients.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.063
Depth of Cut: 0.220
Top Cutter Head
Width: 3.000
Depth of Cut: 0.281
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.281
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$138.28
$239.00
$195.00
(Template not needed)
Total:
$572.28
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$145.53
$254.00
$210.00
(Template not needed)
Total:
$609.53
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$156.41
$276.50
$232.50
(Template not needed)
Total:
$665.41
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
