Shutter/Louver 4" - 7
Shutter/Louver 4" - 7

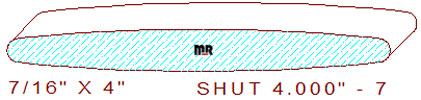

This 4" - 7 shutter/louver slat measures 4.000" wide by .437" thick. The elliptical-shaped detail is widely used in the construction of interior shutters (window coverings). Our tilt rods for moving these, when assembled, are on the first pages of this category. The profile has an 18-15/16" radius on top and bottom, with a 1/2" radius tangent to each side edge of the design.
This professionally drafted CAD DXF file contains two high precision template designs to create cutters for this functional detail, one for the top and bottom, and the other for the left and right. The left and right cutters are designed with an axial constant with two profiles in a sixty-millimeter cutter head; these blade positions can be swapped when the knives become dull, saving time in production. From an idea in your mind to reality in your home, our profiles reflect the beauty and style of your imagination; let us help you design a custom pattern today.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.625
Depth of Cut: 0.238
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.238
Top Cutter Head
Width: 4.000
Depth of Cut: 0.125
Bottom Cutter Head
Width: 4.000
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.50
$123.50
(Template not needed)
$291.00
$247.00
(Template not needed)
Total:
$829.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$177.00
$133.00
(Template not needed)
$310.00
$266.00
(Template not needed)
Total:
$886.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$191.25
$147.25
(Template not needed)
$338.50
$294.50
(Template not needed)
Total:
$971.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
