Shutter/Louver 4-5/16"
Shutter/Louver 4-5/16"

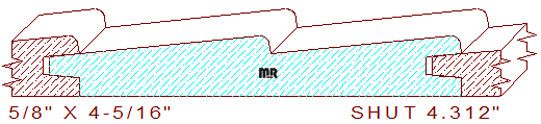

This Shutter/False Louver 4-5/16" measures 4.312" wide by .625" thickness. The profile face dimension is 4" wide and consists of two 3/32" radius angled sections measuring 2" wide. They give the appearance of two louver slats in a closed position; the tongue measures 5/16".
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
