Shutter/Louver Slat 5" - 1

Shutter/Louver Slat 5" - 1

Shutter/Louver Slat 5" - 1

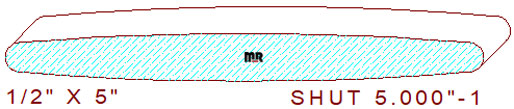

This shutter/louver slat 5" - 1 measures 5.000" wide by .500" thick. The elliptical-shaped profile is used to construct beautiful interior window coverings; the tilt rod designs for moving these when assembled are at the beginning of this category. The profile comprises a 29-7/16" radius on the top and bottom tangent off of a 5/32" radius half-round circle on each side edge of the design. The professionally drafted cad dxf file contains two high precision template designs to create cutters for this functional detail, one for the top and bottom and the other for the left and right. The left and right cutters are designed axial constant with two profiles in a sixty-millimeter cutter head; these blade positions can be swapped when the knives become dull, saving time in production.

Some shutter manufacturers mill these types of wood designs with just the top and bottom horizontal cutter heads; our concern with this machining approach is that you have ninety-degree cuts where the top and bottom cutters intersect each other on each side edge of the design, this leads to burning of the knives which decrease production run times between sharpening, it is also where your eyes will be when the window covering is opened in the horizontal position, exposing all defects in the milling process. Larger cutting circles on the machinery will force you to open bed plates and chip breakers while simultaneously causing snipes (imperfections on the ends of the boards). Trust us; four milling stations are the correct way to mill louver slats; it will cost more money on tooling and more time to set up the moulder, but in the long run, you will have far less machining trouble, and your product will be superior to those mills doing it the less expensive way.

For knife quoting purposes use the calculator below; we have added only the important measurements. A brief detailed explanation of how to use the calculator is located here.

Width = 4.000" / Depth of Cut = .125" (top knives) & .125" (bottom cutters).

Thickness = 1.625" / Depth of Cut = .300" (right blades) & .300" (left cutters).<

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
