Louver/Shutter 5-1/2" - 1

Louver/Shutter 5-1/2" - 1

Louver/Shutter 5-1/2" - 1

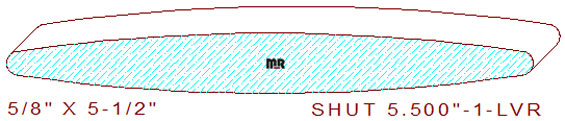

This Louver/Shutter Slat 5-1/2" - 1 measure 5.500" wide by .625" thickness, with a .375" depth of cut on the left and right cutterheads and a .231" depth of cut on the top and bottom horizontal set of knives.

The elliptical shaped shutter slat is comprised of an 18-19/32" radius arc in the center. These are tangent off a 1/8" radius half-round on each side edge of the pattern. This professionally drafted cad dxf file contains two high precision template designs to create cutters for this stunning louver slat detail. From just an idea in your mind to reality in your home, our profiles reflect the beauty and style of your imagination; let us help design your custom pattern today.

Our purple colored ceramic blend grinding wheel hogging at 2000 RPM, with a twenty-five degree back clearance angle, will rough grind a set of high-speed steel knives in a very minimal amount of time, purchase one today with your template order.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
