Shutter/Louver 8-1/4"

Shutter/Louver 8-1/4"

Shutter/Louver 8-1/4"

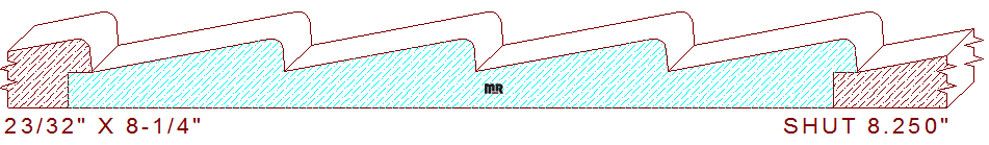

This false louver shiplap measures 8-1/4" wide by 3/4" thick. The profile appears like a louvered door; it could be utilized as an exterior siding. The actual design is an 11-degree angle from 3/8" thickness to 3/4" thickness with a 1/8" radius eased edge top, located 2" on the center; for a more defined profile that looks similar, try Shut-8.250-1 in our profile catalog.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
