Shutter/Louver 1/2" & 5/8"

Shutter/Louver 1/2" & 5/8"

Shutter/Louver 1/2" & 5/8"

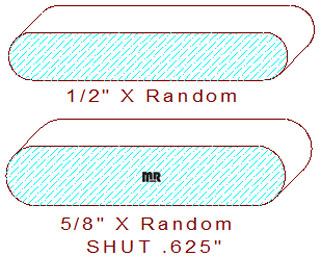

These shutter/louver slat 1/2" & 5/8" measure .500" and .625" thickness depending on how you orient the cutters on the molder during the milling process; widths can be manufactured to any desired size within the parameters of the machinery. The design concept is to mill either size shutter slat by simply flipping the cutter heads over to the opposite side cutterhead without altering the axial position of the cutter heads. The profile comprises 1/2," and 5/16" radius bullnose edges tangent off the top and bottom of the desired thickness.

We're delighted you found a functional profile that interests you; please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you're just getting started in the industry, read some of our informational articles ; they will help you with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount artisans for all our clients.

For knife quoting purposes use the calculator below; we have added only the necessary measurements. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the moulder to help operators save time and increase accuracy during machine setup.

Thickness = 1.625" / Depth of Cut = .502" (right blades) & .502" (left cutters), only one template is needed to make the side knives.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
