Shutter/Louver 16 & 20 MM

Shutter/Louver 16 & 20 MM

Shutter/Louver 16 & 20 MM

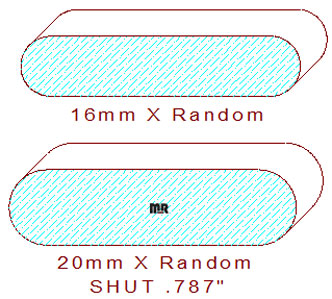

These shutter/louver slats 16mm & 20mm measure .630" and .787" thickness depending on how you orient the blades on the molder during the milling process. Widths can be manufactured to any desired size within the machinery used to mill the profiles. The concept is to mill either size louver slat by simply flipping the cutter head over to the opposite side cutter head spindle to cut the desired thicknesses without moving the axial position of the cutter head. The profile comprises a .315" and a .394" radius bullnose edge tangent off the top and bottom of the desired thickness.

Learn how to become more efficient while searching over 15,000 patterns in our state-of-the-art profile catalog. Watch the short video on the first page to find design ideas for your next woodworking project; we're sure you will locate the perfect embellished pattern to enhance the architectural style of your beautiful home or office.

For knife quoting purposes use the calculator below; we have added only the necessary measurements. A brief detailed explanation of how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction-decimal-millimeter chart and place it on the molder to help operators save time and increase accuracy during machine setup.

Thickness = 2.375" / Depth of Cut = .502" (right cutterhead) & .502" (left cutters), only one template is needed to make the side knives.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
