T-Astragal 1-1/4" - 1

T-Astragal 1-1/4" - 1

T-Astragal 1-1/4" - 1

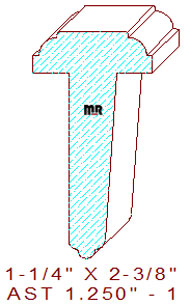

This 1-1/4" - 1 T-astragal measures 1.250" wide by 2-3/8" tall. The functional profile is comprised of a 3/4" wide by 1/16" tall raised fillet in the center, flanked by two 3/16" radius ovolo's leaving a 3/16" vertical line on each side edge. The 1-3/4" tall center is rabbeted by 3/8" and tapered by 4-degree on one side for the interior door and square on the other side for securing the astragal during installation, the bottom retains a decorative 3/16" wide half circle flanked by 3/32" quarter round beads.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.309
Top Cutter Head
Width: 2.375
Depth of Cut: 0.529
Bottom Cutter Head
Width: 2.375
Depth of Cut: 0.375

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$143.00
$199.25
$199.25
Total:
$541.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$151.00
$211.75
$211.75
Total:
$574.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$159.00
$224.25
$224.25
Total:
$607.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
