T-Astragal 1-1/4" - 3
T-Astragal 1-1/4" - 3

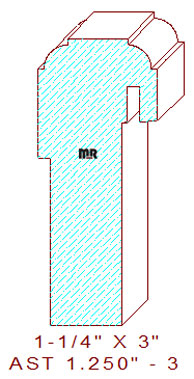

This exterior door t-astragal 1-1/4" - 3 measures 1.250" wide by 3.000" tall, enabling the detail to be machined out of six-quarter lumber. The profile consists of a double ovolo top separated by a 5/8" broad line segment on top, one side of the pattern is rabbeted 1-3/4" wide by 1/8" deep, the opposite side is rabbeted 2-1/8" wide by 5/16" deep. The weatherstrip groove would have to be milled on a universal spindle on a molder during production or on a table saw after milling. The acrylic templates are designed for milling up to 3-1/2" tall, requiring three profiling cutter heads to produce this product on an industrial molder, right, top & bottom spindle positions.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.313
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.125
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.00
Not Needed
$238.00
$238.00
Total:
$623.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.00
Not Needed
$253.00
$253.00
Total:
$661.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.00
Not Needed
$275.50
$275.50
Total:
$718.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
