T-Astragal 1-1/4" - 6

T-Astragal 1-1/4" - 6

T-Astragal 1-1/4" - 6

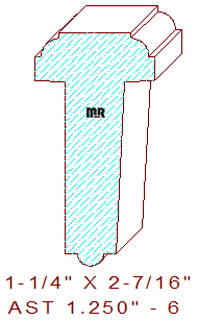

This Interior Door T Astragal 1-1/4" - 6 measures 1.250" wide by 2.437" tall. The profile consists of a double ovolo detail on the top sides divided by a 3/4" wide fillet in the center. One side of the pattern has a rabbet 1-13/16" wide by 5/16" deep; the other side rabbet dimensions are 1-13/16" wide by 5/16" deep with a three-degree taper for the interior door to close. The bottom of the pattern retains a decorative 9/32" wide half round bead flanked by 1/8" wide fillets. The Cad-generated Dxf file contains four professionally designed template patterns to create molding cutters for this detail. If you're looking for flat astragals, please browse our catalog's "Plant On" category; this is where all applied knives illustrations are located.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.250
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.125
Top Cutter Head
Width: 2.437
Depth of Cut: 0.313
Bottom Cutter Head
Width: 2.437
Depth of Cut: 0.313

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$143.00
$143.00
$202.35
$202.35
Total:
$690.70
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.00
$151.00
$215.10
$215.10
Total:
$732.20
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$159.00
$159.00
$227.85
$227.85
Total:
$773.69
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
