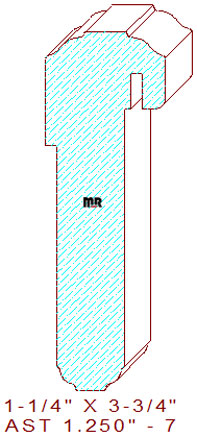

This exterior door t-astragal 1-1/4" - 7 measures 1.250" wide by 3.750" tall, permitting the detail to be milled laying horizontally flat out of six quarter lumber. The beautiful, functional profile is composed of a centered 29/64" wide by 1/16" tall raised fillet on top, flanked by two small ogees with a 3/64" eased edge, the left side retains a 1-9/16" tall by 1/8" rabbet, the opposite side has a 2-15/16" by 7/16" rabbet and a 3/8" tall by 1/8" wide kerf for weatherstripping, this groove is milled by either a universal cutter head or on a table saw after the machining process. The decorative bottom edge comprises a 21/64" wide by 5/64" tall raised fillet flanked by a small ovolo on each side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.437
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.256
Top Cutter Head
Width: 3.750
Depth of Cut: 0.430
Bottom Cutter Head
Width: 3.750
Depth of Cut: 0.120
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.00
$147.00
$277.00
$277.00
Total:
$848.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.00
$155.00
$295.00
$295.00
Total:
$900.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.00
$167.00
$322.00
$322.00
Total:
$978.00
