T-Astragal 1-3/8"

T-Astragal 1-3/8"

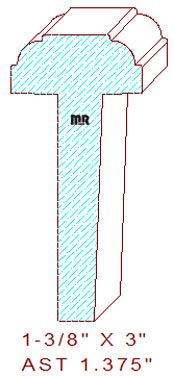

This t-astragal measures 1-3/8" wide by 3" tall, designed for a 2-3/8" door. The profile consists of a 23/32" wide fillet with an ovolo on each side. One side is rabbeted square for construction, and the other side of the detail has a tapered rabbet; this allows the door to close correctly and receives the entry's four-degree beveled edge.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.375
Depth of Cut: 0.518
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.000
Depth of Cut: 0.508
Bottom Cutter Head
Width: 3.000
Depth of Cut: 0.500
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$153.50
Not Needed
$238.00
$238.00
Total:
$629.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.00
Not Needed
$253.00
$253.00
Total:
$668.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.75
Not Needed
$275.50
$275.50
Total:
$725.75
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
