T-Astragal 1-7/16"
T-Astragal 1-7/16"

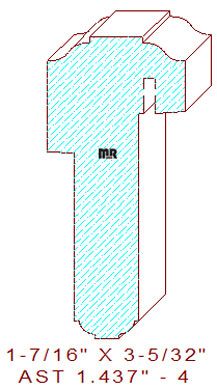

This exterior t-astragal measures 1-7/16" wide by 3-5/32" tall. The profile is composed of a 9/16" wide stepped fillet with a small ogee detail on both sides; one side of the pattern is rabbeted 1-3/4" wide for installation, the other side rabbet dimensions are 2-3/16" comprehensive for the door and weatherstripping, the bottom of the design retains a 1/4" wide fillet with an attached ovolo located on both sides, this is a decorative and very eye appealing feature when installed. Please note: The weatherstrip groove must be milled by a universal spindle or a table saw after production.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.236
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.327
Top Cutter Head
Width: 3.250
Depth of Cut: 0.469
Bottom Cutter Head
Width: 3.250
Depth of Cut: 0.281
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$134.00
$134.00
$251.00
$251.00
Total:
$770.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$141.00
$141.00
$267.00
$267.00
Total:
$816.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$151.50
$151.50
$291.00
$291.00
Total:
$885.00
