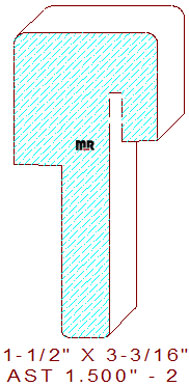

This exterior door t-astragal 1-1/2" - 2 measures 1.500" wide by 3.187" tall, requiring the pattern to be milled from eight-quarter lumber. The functional profile is composed of a 1-3/8" elevated vertical line with a 1/8" eased edge on the top left, the lower rabbet dimension is 1-13/16" tall by 1/2" wide, the center also measures 1/2" wide with 1/16" rounded edges, the right side consists of a 1-1/8" elevated vertical line with a 1/8" radius edge on top, joined to a 2-1/16" tall by 1/2" deep rabbet, the saw kerf for the weather stripping is machined by either a universal cutter head on the molder or by a table saw after the machining process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.188
Depth of Cut: 0.688
Bottom Cutter Head
Width: 3.188
Depth of Cut: 0.688
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$263.53
$263.53
Total:
$527.06
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$279.28
$279.28
Total:
$558.56
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$302.91
$302.91
Total:
$605.82
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
