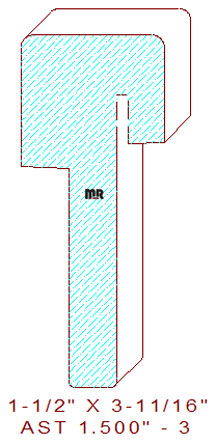

This Exterior Door T Astragal 1-1/2" - 3 measures 1.500" wide by 3.687" tall. The functional profile consists of 1/8" radius edge fillets on top and 1/16" radius edges on the bottom with a 1/2" thickness dimension at the middle, one side of the pattern is rabbeted 2-5/16" wide by 1/2" deep, the opposite side rabbet dimensions are 2-9/16" wide by 1/2" deep. The weatherstrip groove is machined on a universal spindle, or a table saw after milling. The professionally cad produced dxf file contains two high-precision template designs to create cutters for this specific detail.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.688
Depth of Cut: 0.625
Bottom Cutter Head
Width: 3.688
Depth of Cut: 0.625
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$273.78
$273.78
Total:
$547.55
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$291.53
$291.53
Total:
$583.06
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$318.16
$318.16
Total:
$636.31
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
