T-Astragal 1-3/4"
T-Astragal 1-3/4"

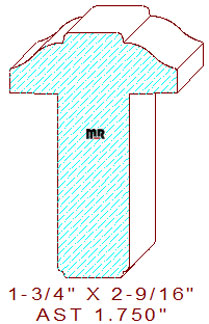

This interior door t-astragal/mullion 1-3/4" measures 1.750" wide by 2.563" tall. The profile consists of a double cyma reversa/ogee detail, the top sides divided by a 5/8" wide radius edge fillet in the center, both sides of the pattern are rabbeted 1-13/16" wide by 1/2" deep leaving a center thickness of 3/4", the bottom retains a decorative notched fillet with a 1/16" radius on both edges.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.750
Depth of Cut: 0.563
Left Cutter Head
Thickness: 1.750
Depth of Cut: 0.312
Top Cutter Head
Width: 2.562
Depth of Cut: 0.500
Bottom Cutter Head
Width: 2.562
Depth of Cut: 0.500
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$174.00
$174.00
$216.22
$172.22
(Template not needed)
Total:
$736.45
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$184.00
$184.00
$229.47
$185.47
(Template not needed)
Total:
$782.94
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$199.00
$199.00
$249.34
$205.34
(Template not needed)
Total:
$852.69
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
